N/C Smoke Module 24vdc

Name: N/C Smoke Module 24vdc
SKU: 15
Price: 200.00 USD
Availability: InStock

$200.00

N/C Smoke Module Used with the FS90 Simple board to interface N/C Smoke detectors, Hall PHI Key switch, and N/C PHII Key switch. Sums N/C smoke detector and hall key switch signals to one output that is run to the FS90 Board to provide a PHI signal. Also has a separate output to invert the […]

Category: FS90 Simple, Interfacing

Description
Reviews (0)

Description

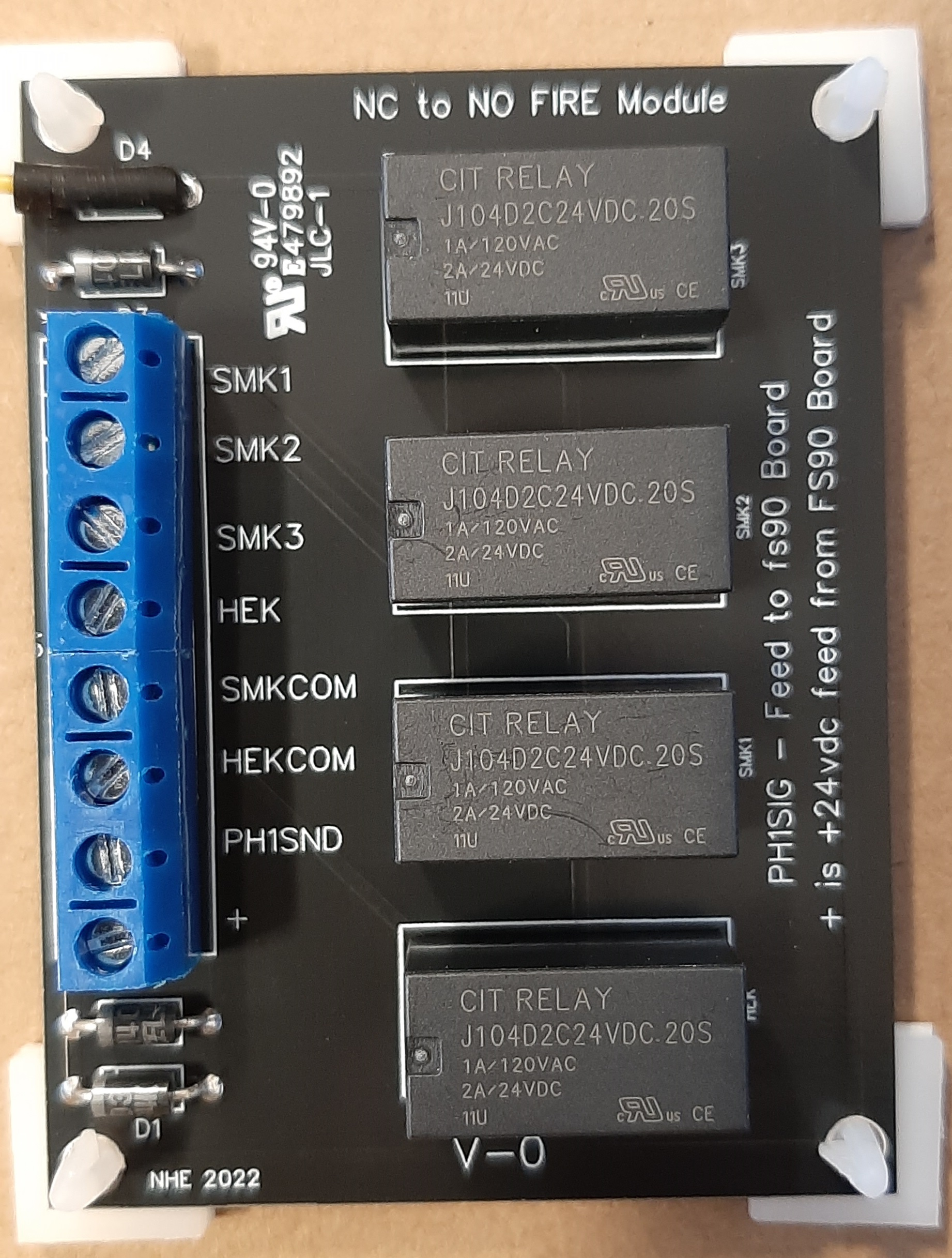

N/C Smoke Module

Used with the FS90 Simple board to interface N/C Smoke detectors, Hall PHI Key switch, and N/C PHII Key switch.

Sums N/C smoke detector and hall key switch signals to one output that is run to the FS90 Board to provide a PHI signal. Also has a separate output to invert the PHII key switch if it is also N/C.

ASME/ANSI 94V-0 , meets ASME A17.2 requirements.

Needed on Some Otis LRV/LRS installs.
